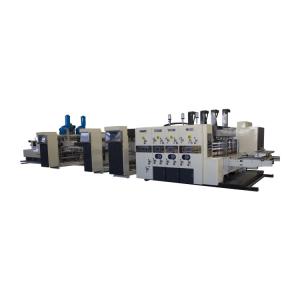

High Speed Flexo Printer Slotter Rotary Die Cutter Inline With Folder Gluer
- The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, gluing and so on.
- Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
- All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
- Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
- The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
- The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
- Motorized digital phase adjustment with "automatic zero return" and "memories" function ( options: PLC control with touch screen)
- The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
| model | 900x2000 | 1200x2200 | 1200x2600 |
| max feeding size | 900x2000mm | 1200x2200mm | 1200x2600mm |
| max printing size | 900x1800mm | 1200x2000mm | 1200x2400mm |
| min working size | 300x600mm | 400x650mm | 400x700mm |
| speed | 120pcs/min | 120pcs/min | 120pcs/min |
Carton folder gluer is specially designed and manufactured for inline with printing, slotting, folding, gluing and stacking, it features automatic conveying, glue applying, folding, with multi-stages auto control. Adopt PLC control, touch screen interface, pre-storage and management of orders, Its high-speed production capacity, fast order-changing and good stability can meet the short lead times required for our carton customers.
1. Q: Are you a factory or trading company?
A: We are machinery manufacturer which is located in Cangzhou,Hebei province,China.
2. Q: How can I visit your factory?
A: We can pick you up from Beijing airport if you need, welcome to visit our factory.
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing
machine, creasing and die cutting machine,folder gluer,flute laminator,stitching&strapping machine and other
corrugated cardboard production equipments.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet
users’ requirements as our sole purpose, providing the products with excellent quality, professional technology.
Always attach great importance to quality controlling from the very beginning to the very end.
a. All spare parts we used are genuine.
b. Skillful workers care every detail in handling the producing and packing process.
c. Quality control department especially responsible for quality in each process.
d. The machine will be running more than 24 hours before shipping.
e. Each of our machine has its manufacture series number to track for long time.
5. Q: How is the evaluation of the products?
A: Products are distributed in USA,Russia, Poland,Italy,England,the Middle East, Mexico,Argentina,Peru,Africa,
Southeast Asia and other countries and throughout the country. Product quality and enterprise reputation
get the high praise at home and aboard.
6. Q: What is the payment term?
A: 30% deposit will be paid after the contract is signed, and the remaining 70% will be paid before shipment.
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation
and various types of weather conditions. A full set of maintenance and operation manuals is included.
